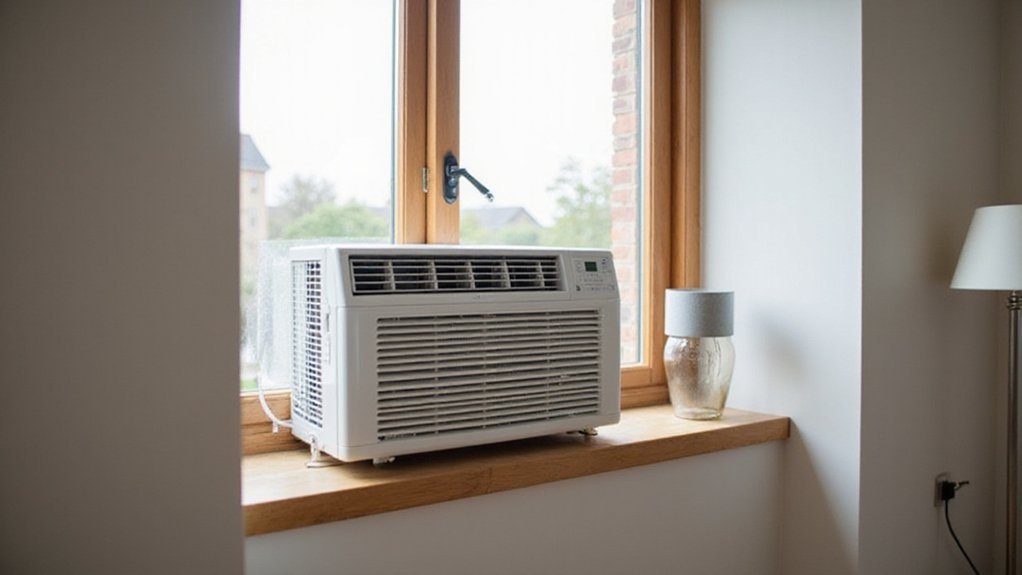

Installing a window air conditioner might seem tricky, but with a few simple steps, you can get it working smoothly.
The key is making sure it fits properly and is safely secured, so you stay cool without any hassle.
By the end of this guide, you’ll know exactly how to install your unit correctly—no guesswork involved.
Keep reading to learn the full step-by-step process.
Check Your Window Fit and Confirm the Outlet Is Grounded
Ensure your outlet is grounded before installation. Confirm that the outlet matches your unit’s voltage, typically 115V or 230V, and verify it is properly grounded to prevent electrical shock. Use only the wall outlet; avoid extension cords as they can cause overheating and pose fire risks. Inspect the power cord for any damage before plugging in. The outlet should have a grounding pin or wire, and you can check with a outlet tester if unsure. For a unit with Wi-Fi and quiet mode features, confirm the outlet can support these electricity requirements. A queen size mattress typically measures 60 inches wide by 80 inches long, which is much larger than your window unit’s required clearance. For accurate window fit, use a steel tape measure to determine the width and height of the opening, much like measuring for a curtain rod.
Measure your window opening against the unit’s BTU rating. For units rated between 5,000 and 8,000 BTU, the minimum width should be 23 to 36 inches and the height at least 14.5 inches. Ensure the sill provides a flat, even surface with at least 2 inches of support underneath to hold the unit securely. Mark the center point at 17.25 inches to help align the unit precisely. Remove any obstructions such as screens or bars that could block the opening, and verify the sill depth can support the weight of the unit. This careful preparation mirrors the approach needed when building a DIY closet organizer, where precise spacing and sturdy support are key.
Unbox and Assemble the Window Air Conditioner
Carefully unbox the air conditioner to prevent damage to the coils or fins. Verify that all hardware—including screws, brackets, and side panels—is present, as missing pieces are a common oversight. Check the coil surfaces for dirt and clean them if necessary to maintain optimal performance. Inspect the foam weatherstripping for cracks; a damaged seal can lead to energy loss. Ensure your window has about 30-60 inches of clearance above the floor to meet installation height requirements. Consider how privacy and visibility will be affected by the unit placement. To keep the unit running efficiently, clean the coils periodically with a soft brush or cloth to prevent dust buildup that can reduce airflow. You might also consider using a budget-friendly DIY approach to create a support rack if the window sill is not level.
Next, assemble the side panels by extending them from both sides of the unit. Secure these with screws into the window sash and sill track. Attach mounting brackets to the bottom or sides of the unit for additional stability. Install the foam seal between the upper and lower sashes, ensuring a tight fit. Follow up by applying adhesive weatherstripping under the sash to prevent air leaks. Before proceeding, double-check that everything is snug and properly aligned to avoid issues during operation.
Lift and Position the Unit in the Window (Get a Helper)
Enlist a helper before lifting the air conditioner to reduce physical strain and prevent injury. Having a second person to assist makes lifting safer and easier. Always lift with your legs, not your back, to avoid strain. Carefully guide the unit from inside the home into the open window, ensuring it doesn’t slip or fall. The unit’s design, with an outside compressor, enhances energy efficiency by reducing noise and power consumption. When selecting the unit, comparing top dresser picks ensures you choose a model with reliable performance and quality. Unlike a duvet insert, this air conditioner requires precise physical placement rather than simple bedding arrangement. For a quieter operation, consider models with advanced noise reduction that minimize disruptive sounds.
Once the unit is inside the opening, proper balancing is essential. Your helper should hold the unit steady while you center it horizontally. This helps achieve a snug fit and prevents tilting. Ensure the bottom mounting rail sits flat on the windowsill. With your helper stabilizing the unit, gently lower the window sash onto the top flange until it rests securely. This action locks the unit in place without relying on brackets yet. Take your time during this step to avoid misalignment or damage. Precise positioning now reduces problems with fit or drainage later on.
Lock the Sash and Install Security Brackets
To lock the sash and install security brackets, start by closing the upper sash firmly against the AC’s top rail. Make sure it is fully seated in the channel to prevent gaps that could allow insects or air to pass through. Test that the sash doesn’t lift when force is applied from outside, confirming it is securely locked in place.
Next, position the security bracket. Place the small U-shaped end over the AC’s upper flange, then close the window so that the larger U-shaped end is trapped under the sash. Secure the bracket with the provided bolt through the bottom hole. Drive 1/2-inch locking screws through the frame holes into the window sash to reinforce security. Extend the frame locks into the slot, and install anti-tip brackets by securing them with the Phillips screws provided. This setup effectively prevents window movement and unauthorized opening.
Seal Gaps With Foam and Weather Stripping
To seal gaps effectively, measure their sizes first. For narrow gaps under a quarter inch, use adhesive-backed foam weatherstripping tape. Cut it to length, peel off the backing, and press it firmly around the edges of your AC unit. For larger gaps, cut rigid foam board inserts to match the exact dimensions of the opening. Be careful not to compress the foam; you want slight pressure to ensure proper insulation. Use non-adhesive foam to tightly fill small, pin-sized openings. Vacuum-sealed foam expands upon opening and creates barriers to block both air and bugs effectively. An air purifier works similarly by capturing airborne particles to improve indoor air quality, but this sealing method directly prevents outdoor pollutants from entering. Unlike a desk that prioritizes workspace, a vanity setup focuses on aesthetic comfort and personal grooming routines. For a cozy bedroom, sateen cotton sheets provide a soft, lustrous feel that complements the improved temperature control from sealing the window unit.
Always attach the weatherstripping to the AC unit rather than the window frame. This approach makes removal easier and prevents damaging your window. Avoid sealing the top channel or any weep holes, as these areas need airflow. Run your hand along all edges to check for drafts—if you feel air, there’s still a leak. Proper foam sealing locks in cool air and enhances your room’s comfort by preventing air leaks.
Test the Unit and Confirm It’s Secure Before Powering On
Before powering on your window air conditioner, ensure the unit is thoroughly tested and secure. First, inspect the power cord and plug for any damage, and verify that the unit’s internal components are properly assembled without loose wires. Use a multimeter to check for electrical continuity, confirming there are no short circuits or wiring issues that could pose safety hazards. Also, test the controls and thermostat to ensure they respond correctly. Once you’re satisfied with the unit’s functionality, remove the front grill and clean the filter for unobstructed airflow, which helps maximize cooling efficiency. Check the outer coils with compressed air to clear debris, reducing noise and improving heat dissipation. Confirm the casing tilts downward 3 to 5 degrees using a leveler—this slight angle prevents water from pooling and minimizes vibration during operation. Align the grooves with support brackets, ensuring the U-shaped slot matches the window opening. Lower the window sash behind the top rail and secure the unit with screws through the upper flange into the sash to prevent lifting. Install the outside bracket and attach steel corner braces to stabilize the unit outside. Fully extend the accordion panels to eliminate leverage points and secure the setup. These steps confirm the unit’s safety and stability before you turn it on.
Do a Final Walkthrough: Screws, Gaps, and Cord Safety
Inspect the power cord carefully. Never use a standard extension cord with appliances like this, as it can be a fire hazard. Instead, plug the unit directly into a grounded three-prong outlet, making sure the cord isn’t stretched or pinched. Check the outlet for discoloration, buzzing, or scorch marks—any of these signs indicate a problem. If you notice any of these issues, contact a licensed electrician before using the unit again.
Also, verify that the window sash locks securely and that the air conditioning unit doesn’t wobble or shift when in place. A stable, tight fit prevents accidental falls and ensures effective operation. Taking these safety steps helps keep your summer environment cool and safe.
